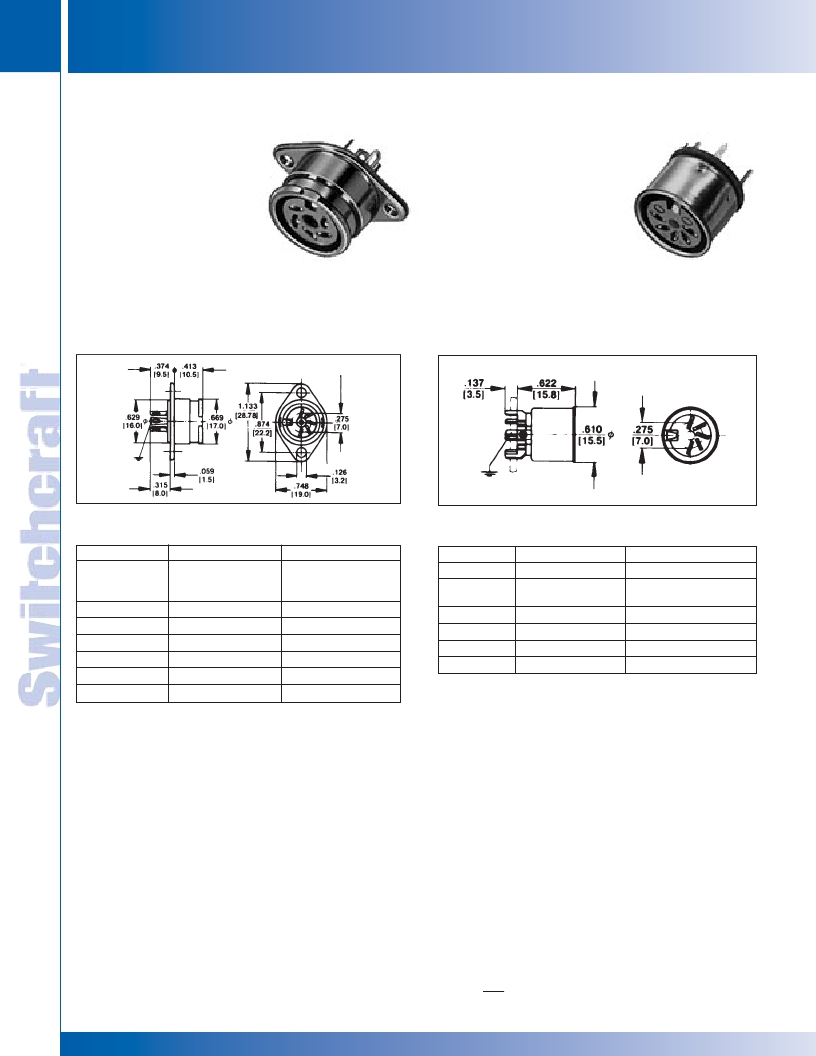

CONNECTORS & RECEPTACLES
DIN RECEPTACLES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
DIN RECEPTACLES (continued)
RECEPTACLE for Lockring Plug
Flared solder terminals on
Part Number 57HB5F
TYPE 61HA5F – TYPICAL
Female receptacle with ground contact. Chassis or panel
mount. Diecast bayonet extension shell with mounting flange.
Mates with all lockring plugs. such as Part Number 12CL5M.
Part Number 55HA2F includes closed-circuit switch (1-B). All
receptacles have straight solder terminals, except as noted.
ORDERING INFORMATION
RECEPTACLE
for Printed Circuit Board
Mounting
TYPE 57NC5F – TYPICAL
Mounts to printed circuit boards. Special PC type terminals
“snap-in” precut boards. See drawing. Tubular metal shell
with ground contact. Part Number 58NC3F mates with
either 3 pin or 5 pin (at 180°) plugs because of its 2 extra
blanks in the contact insert.
ORDERING INFORMATION
Part Number
? 55HA2F
57HB3F*
57HB5F*
60HA4F
61HA5F
Description
2 contacts with
closed-circuit switch
(Schematic #4)
3 contacts at 180°
5 contacts at 180°
4 contacts at 210°
5 contacts at 240°
Pin Arrangement
A
B
F
D
E
Part Number
? 57NC5F
? 58NC3F
? 60NC4F
? 61NC5F
? 62NC7F
? 62NC8F
Description
5 contacts at 180°
3 contacts at 180°
2 extra blanks
4 contacts at 210°
5 contacts at 240°
7 contacts at 270°
8 contacts at 270°
Contact Arrangement
F
C
D
E
H
N
62HB7F*
62HB8F*
7 contacts at 270°
8 contacts at 270°
H
N
“C” in part number indicates PC terminals.
? Available on special order only; contact Switchcraft for price and delivery.
*Flared solder terminals
“A” in part number indicates straight terminal. (solder lug).
? Available on special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
